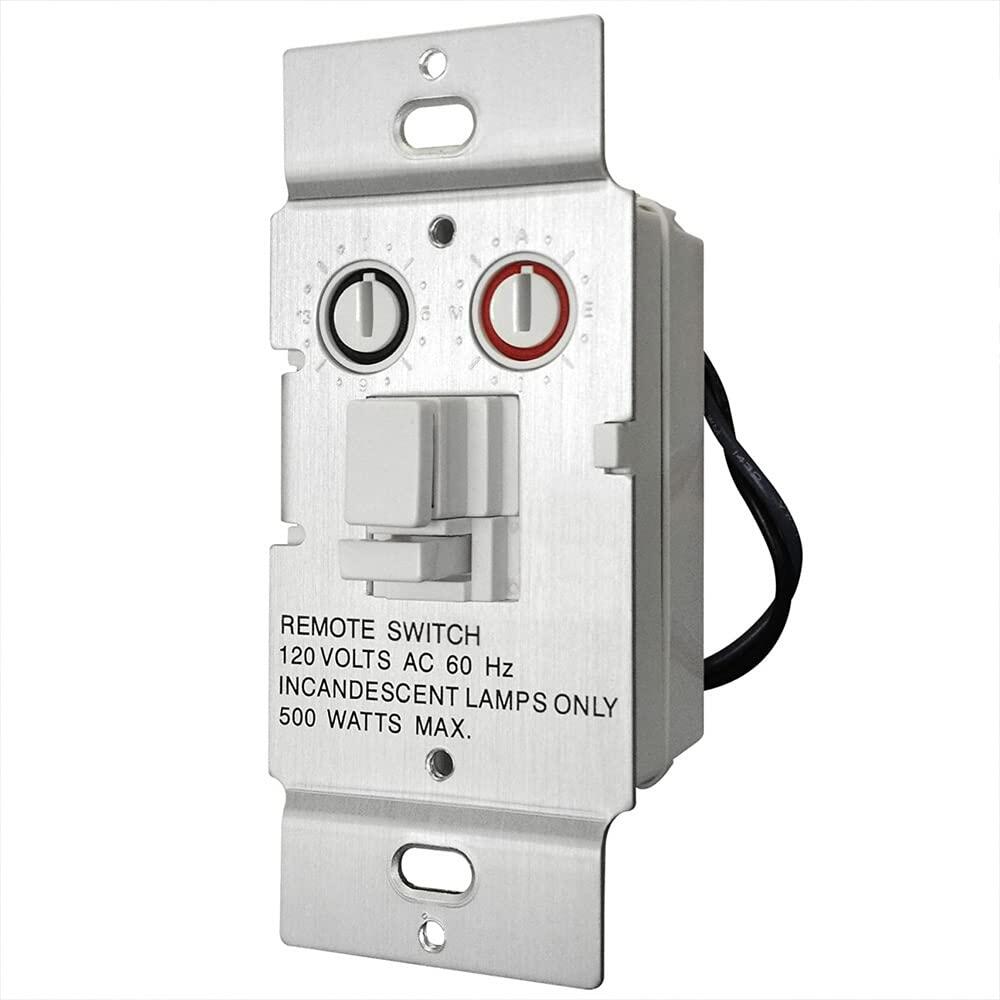

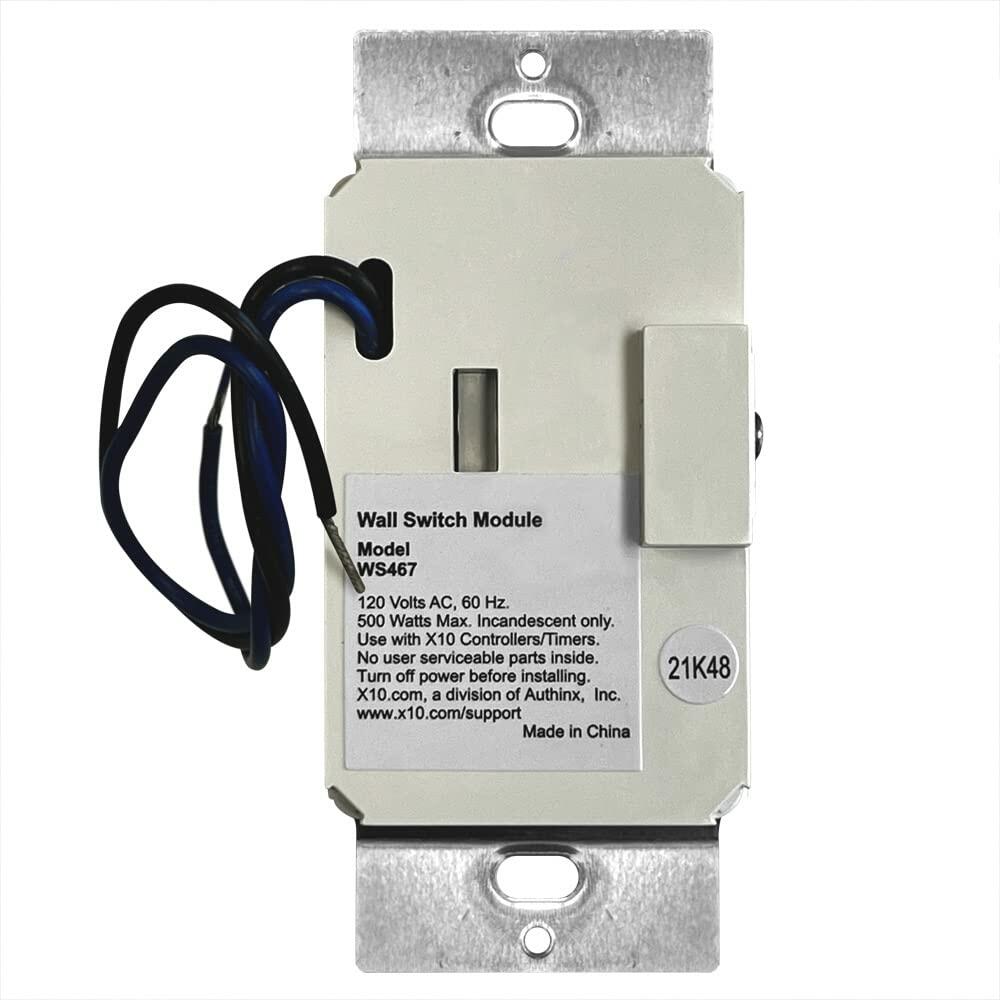

X10 Dimmer Wall Switch (WS467)

The X10 Dimmable Wall Switch replaces an existing light dimmer switch to provide both local and X10 control of the connected light. This module controls dimmable incandescent lights rated between 40W and 500W.

NOTE: Incandescent lights rated below 40W might flicker or operate erratically. Module cannot be used to control appliances, low voltage lamps, or fluorescent lamps.

The X10 Dimmable Wall Switch is an X10 Wired-In Receiver

A basic X10 system includes a Transmitter and a Receiver both sold separately. Transmitters are control devices that send X10 signals through your homes electrical wiring to X10 Receivers. When a Receiver receives a command, it responds by turning a light, appliance or other electrical device On or Off, and sometimes Dim or Bright.

Technical Details

• MPN: WS467
• UPC: 99081315073
• Compatibility: Use with X10 compatible transmitters and any standard toggle trim plate (each sold separately).
• Load Range: 40W to 500W
• Compatible Load Type: Incandescent only
• Color: White

FEATURES

• Replaces an existing dimmer switch
• Provides both local and X10 control of the connected light
• Supports dimmable incandescent lights rated between 40W and 500W
• Controlled with X10 compatible transmitters
• Load Range: 60W to 500W; Incandescent only (no fluorescent)
