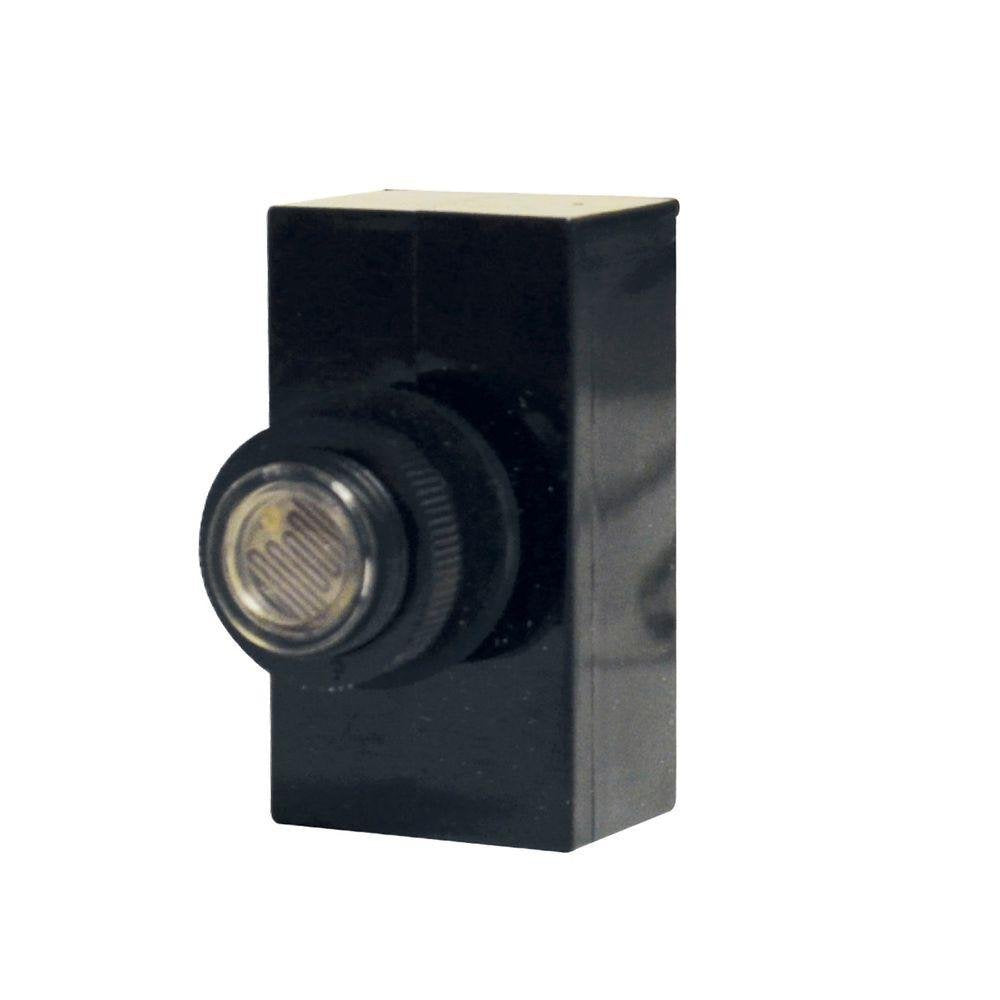

Tork 3002 Photo Control, Flush Mounting, Mechanism with Gasket, 208-277V

Tork 3002 SPST Flush Mounting Lexan Housing Photo Control APPLICATIONS: Pole Lanterns, Lawn Lighting, Walkways. FEATURES:SENSOR: Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants. Photocell responds to the light spectrum near to that of a human eye. OPERATION: Delay up to two minutes to prevent false switching due to light from passing vehicles, lightning, etc. STANDARDS: Meets ANSI/UL773AHOUSING and MOUNTING: Flush mounting through .6875" hole in post lantern or lighting fixture, 3/8" NPT, stem 3/4" long. Gasket and nut supplied. Control housing is weather-resistant molded Lexan with ultrasonically welded seams. ENERGY SAVINGS: Works with screw base CFLs. ON/OFF: Turn ON is 1 to 5fc. Turn OFF is 3 to 15fc. TIME DELAY: ON and OFFCELL: Cadmium sulphide, conformed coated, 1/2 inch diameter. CONTACTS: Normally closed (the unit fails in the ON position)LEAD WIRES: Three color coded, minimum 9 inch wire leads, #16AWG, rated for 105 degrees CPOWER CONSUMPTION: Averages under 1 watt. TEMPERATURE RANGE: -40 degrees to +140 degrees F (-40 degrees to +60 degrees C).

FEATURES

• Photo Controls
• Tork 3002 - Photo Control - Flush Mounting - Mechanism with Gasket Only - 208-277 Volt
• Tork 3002
