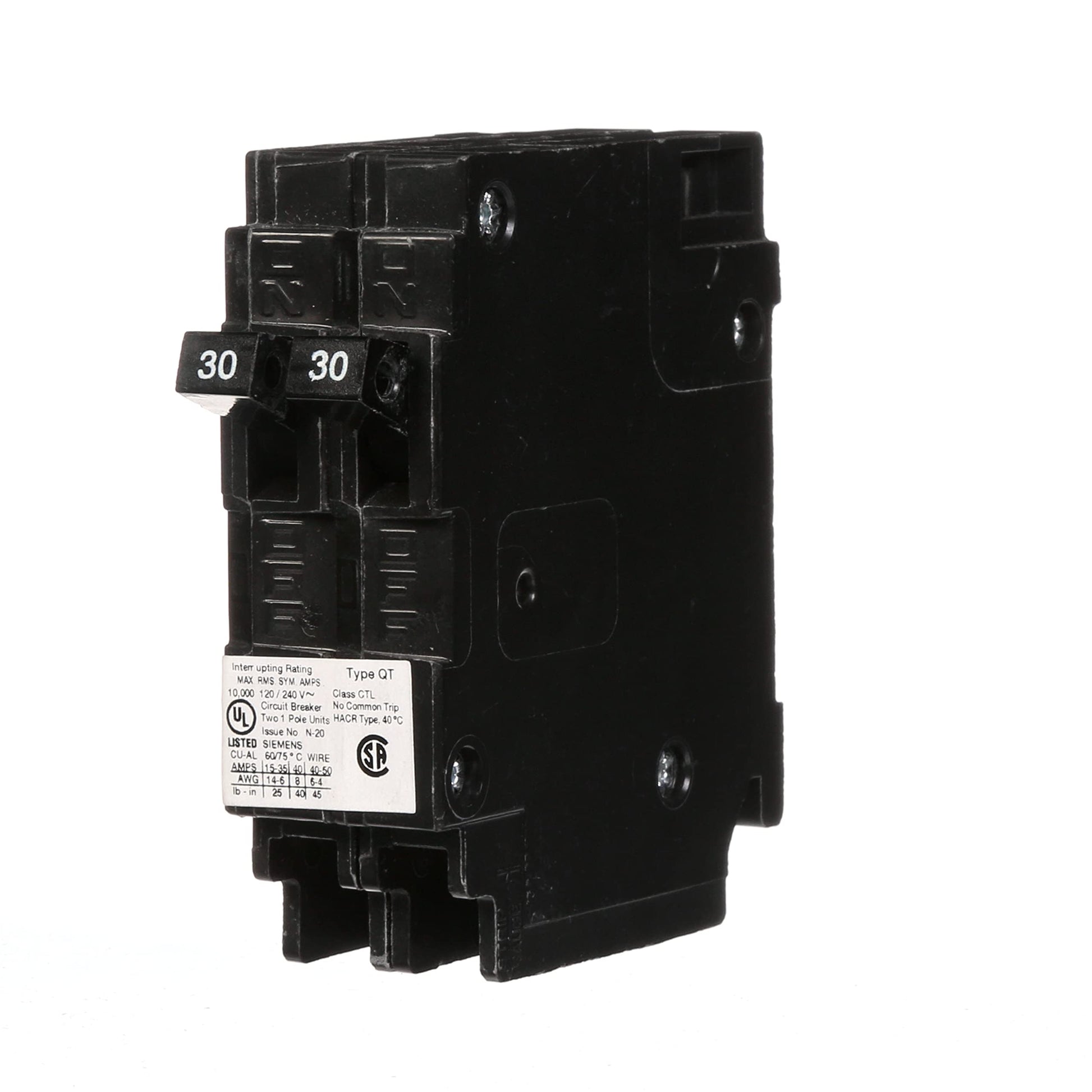

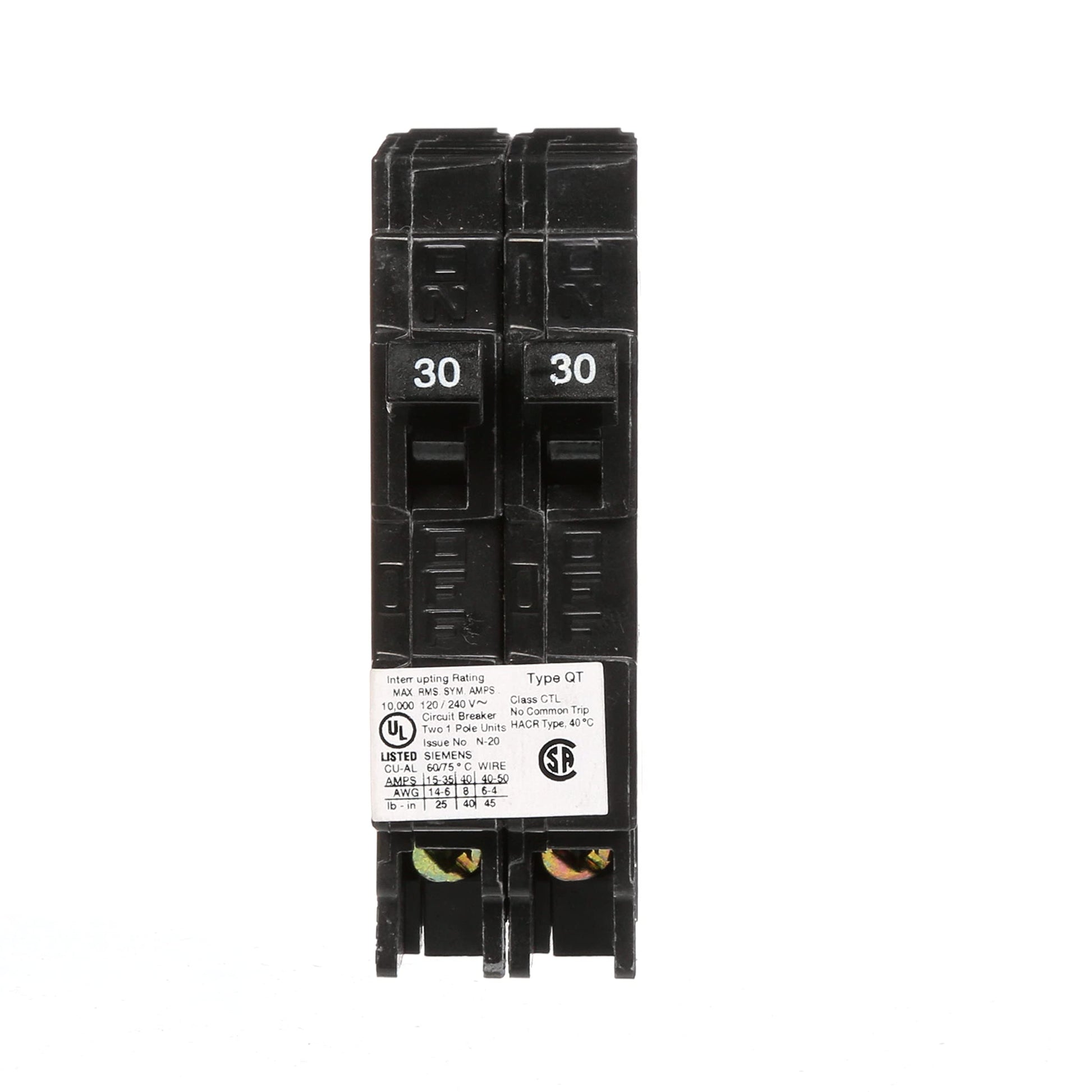

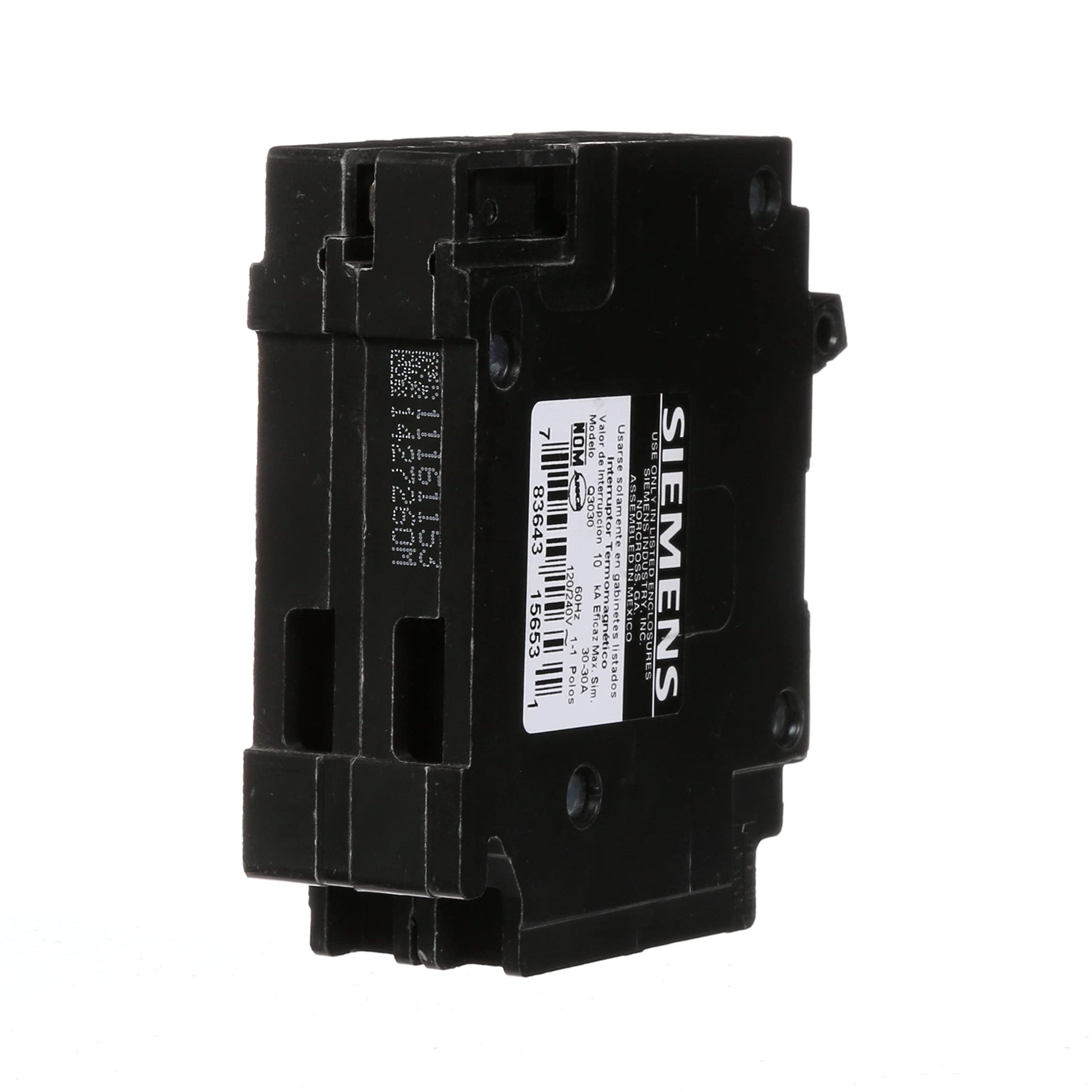

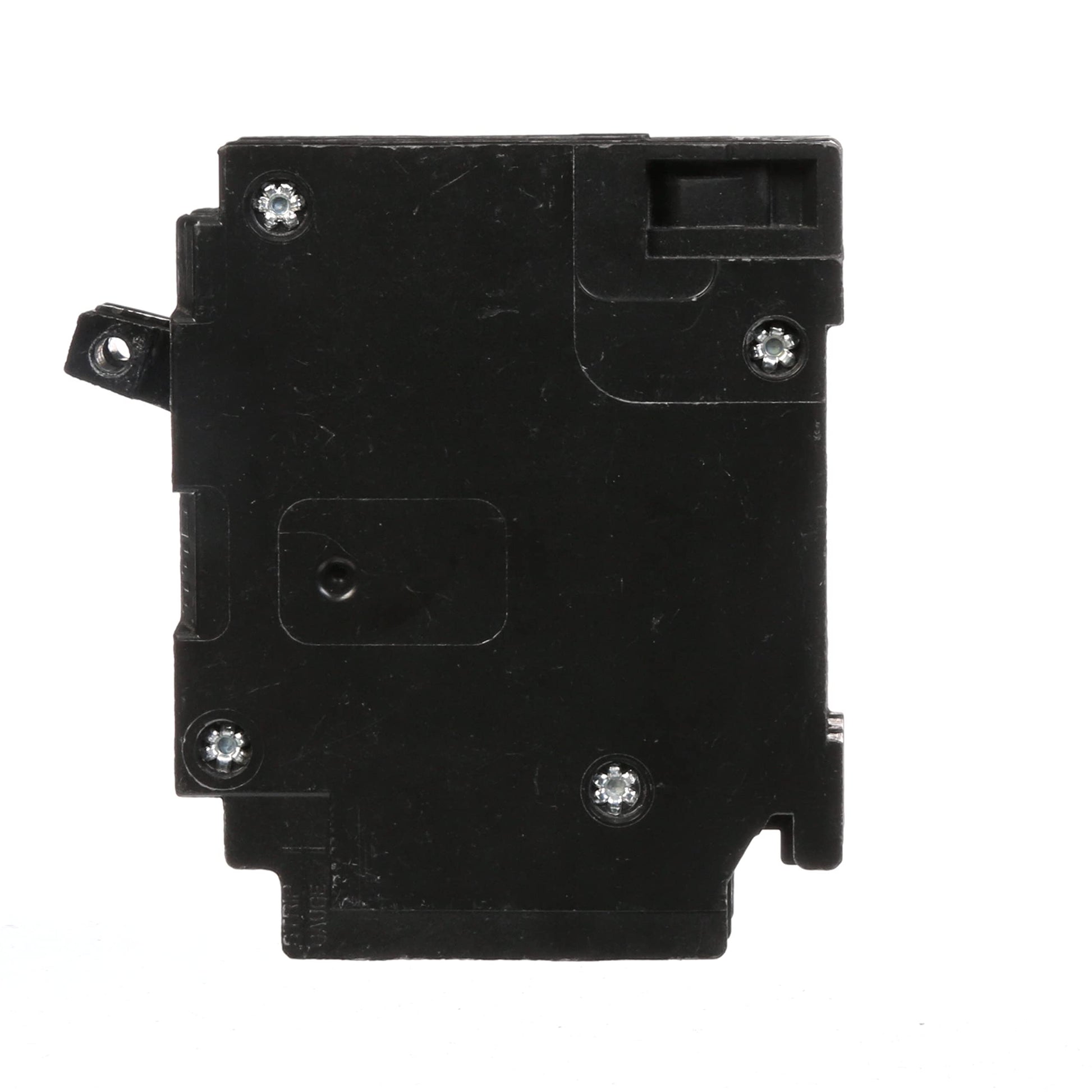

Siemens Q3030 Two 30-Amp Single Pole 120-Volt Circuit Breaker

Product DescriptionSiemens offers a wide array of thermal-magnetic circuit breakers that are the key element for overload and short-circuit protection of your home's electrical system. To provide additional protection Siemens offers circuit breakers to protect against severe electrical shock or electrocution, mitigate the risk of electrical fires and protect against damaging surges and-Voltage spikes. Circuit breakers are intended for switching and protection of your home's wiring from high temperatures caused by excess current higher than the rating of the wire. While thermal-magnetic circuit breakers are the key element for overload and short-circuit protection of your electrical system, there are potentially dangerous conditions that do not involve over current.From the ManufacturerSiemens space saving, plug in circuit breakers are intended for use in Siemens EQ, Siemens Ultimate, ITE, and Gould load centers and meter combinations that are rated to accept type QT breakers. Check wiring diagram to confirm. To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required. The duplex breakers provide two single pole breakers in the space typically required for only one standard breaker. These duplex, 1/2-Inch frame breakers are ideal when new circuits are required in a panel that has no available spaces.

FEATURES

• Type QT Tandem 30-Amp/30-Amp 120V CTL Breaker with rejection feature
• Designed to protect the home's wiring from high temperatures caused by excess current
• Easy plug in style for use with Siemens load centers and meter combos
• Features time saving insta-wire connectors
• 10,000 AIC interrupting rating
• Requires 1 inch breaker space
• Accepts #14-6 AWG Cu or #14-6 AWG Al Wire
• Designed for residential/commercial applications. UL Listed, CSA Certified, HACR Rated, SWD Rated
