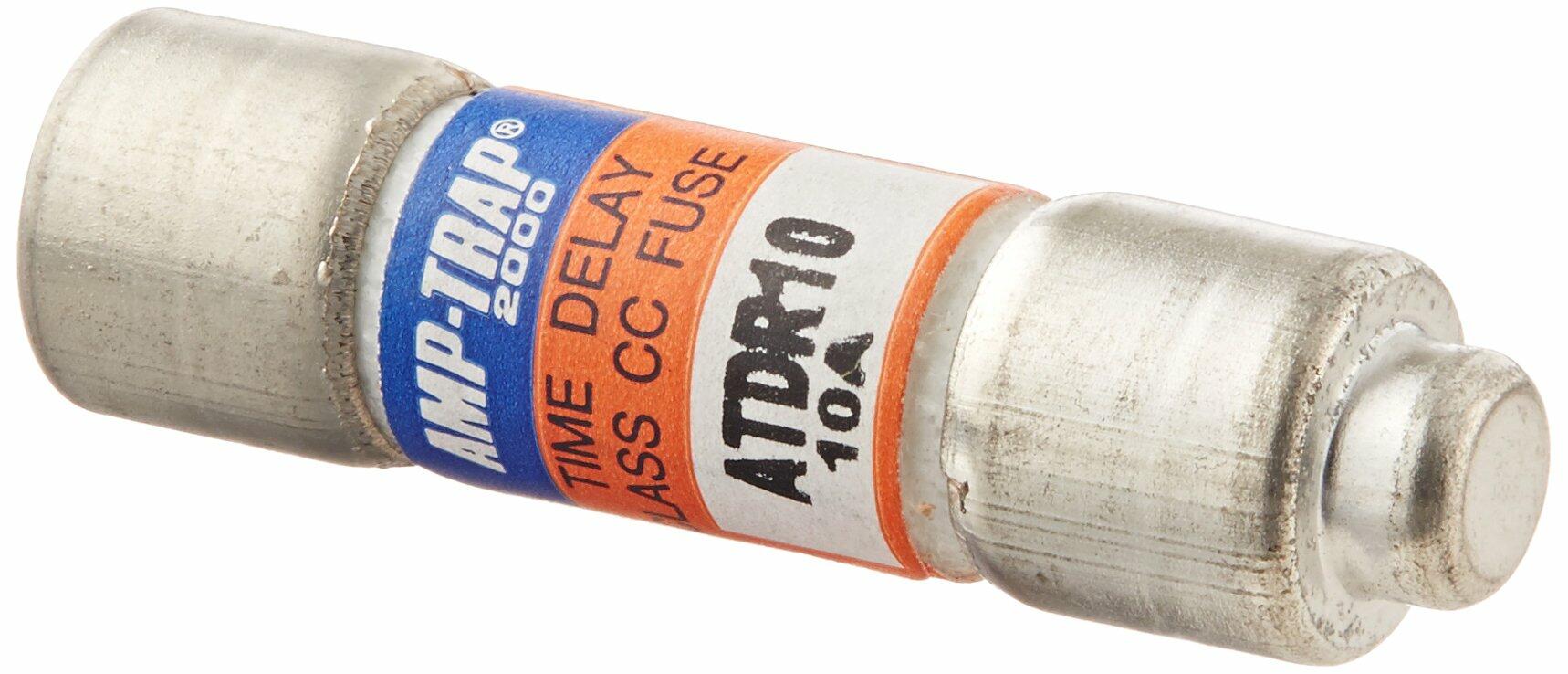

Mersen ATDR Amp-Trap 2000 Time-Delay/Class CC Fuse, 600VAC/300VDC, 200kA AC/100kA DC, 10 Ampere, 13/32" Diameter x 1-1/2" Length

Mersen Amp-Trap 2000 ATDR small-dimension fuse can provide IEC type 2 no damage protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads. The best protection for today's small motors. Metal-embossed date and catalog number for traceability and lasting identification. Fiberglass body provides dimensional stability in harsh industrial settings. High-grade silica filler ensures fast arc quenching and optimum current-limitation. Highlights: time-delay, best choice for small motor protection, highly current-limiting, AC and DC rated. Applications: small motors, contactors, lighting, heating and general loads, branch circuit protection. Approvals: UL listed to standard 248-4 file E2137, CSA certified to standard C22.2 No. 248.4, DC listed to UL standard 248.

FEATURES

• Time-delay for motor starting inrush currents without nuisance opening
• Highly current-limiting for low peak let-thru current
• Improved cycling ability for frequent motor starts/stops without nuisance fuse opening
• Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
• High-visibility orange label ensures instant brand recognition, simplifies replacement
