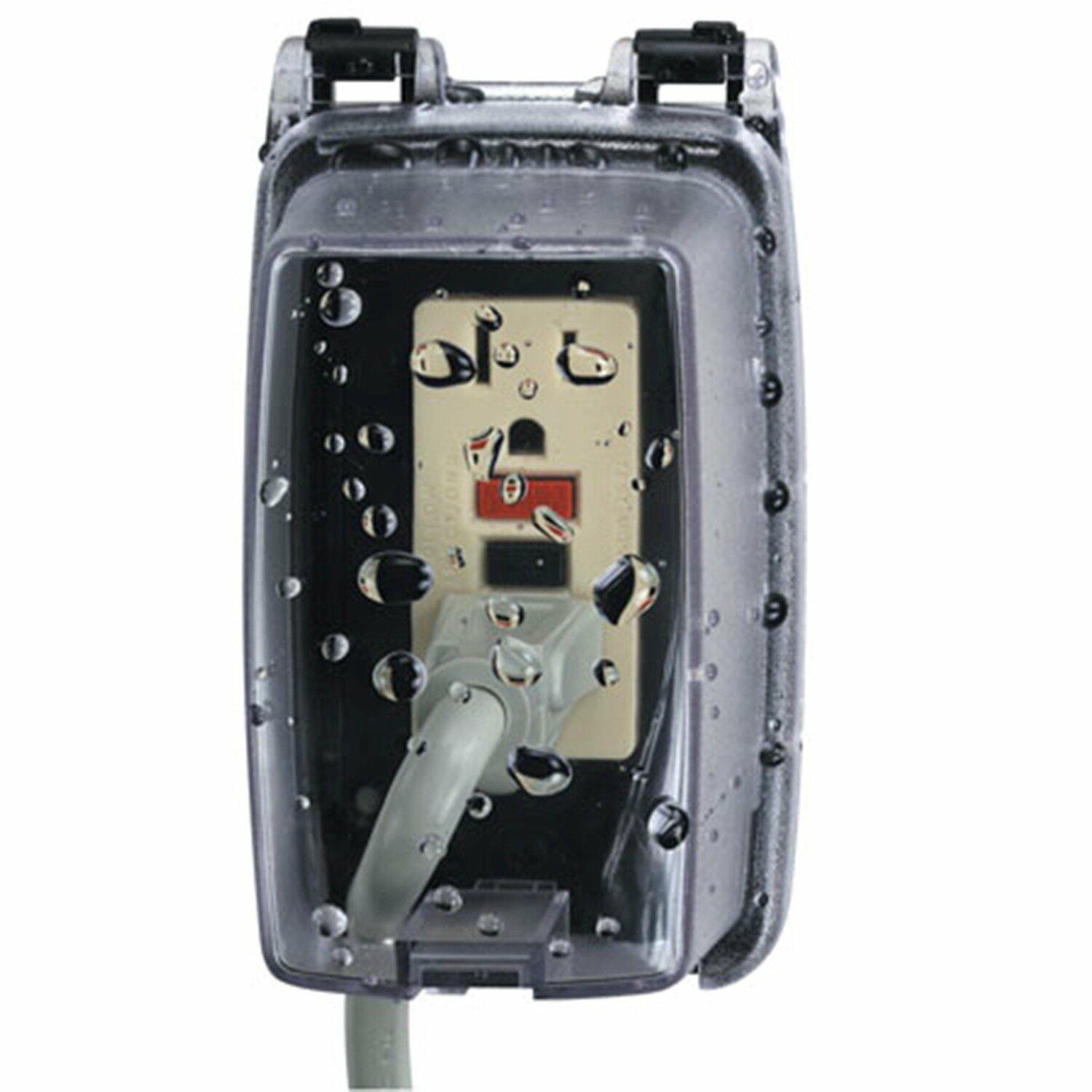

Intermatic WP1000C Guardian Series Single Gang Weatherproof While-in-Use Cover, Clear

Product Description POLYCARBONATE MATERIAL; CLEAR FINISH; 3-13/16 INCH; 5-1/2 INCH; 2-1/4 INCH; GFCI/DUPLEX RECEPTACLE, TOGGLE CONFIGURATION; 1 GANG(S); UL (CANADA AND US), CSA (CANADA AND US), NEC APPROVAL; BOX MOUNTING; NEMA 3R ENCLOSURE; VERTICAL MOUNTING POSITION From the Manufacturer The WP1000C is a single gang NEMA 3R receptacle cover that ensures compliance with 2008 NEC Article 406.8 (B) (1) which requires that 15 and 20 ampere, 125 and 250 volt receptacles installed in a wet location have an enclosure that is weatherproof whether or not the attachment plug cap is inserted. They also meet the 1999 NEC Article 410-57(b) and are designed to meet the 1999 NEC Article 210-60(b), which requires that receptacles installed behind beds in hotels and motels be protected with a suitable guard. The WP1000C is shipped with gasket, mounting screws, base and cover assembly and patented inserts. The single gang Flexi-Guard series provides inserts for a 16 different applications. The WP1000C is designed to mount horizontally. The patented insert design ensures flexibility by simply inserting the proper insert into the base and cover assembly.

FEATURES

• Complies with 2017 NEC Article 314. 15 for damp and wet locations
• UL Certified for Type 3R outdoor enclosures
• Meets requirements for cold impact testing: -60° F (-51° C)
• Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
