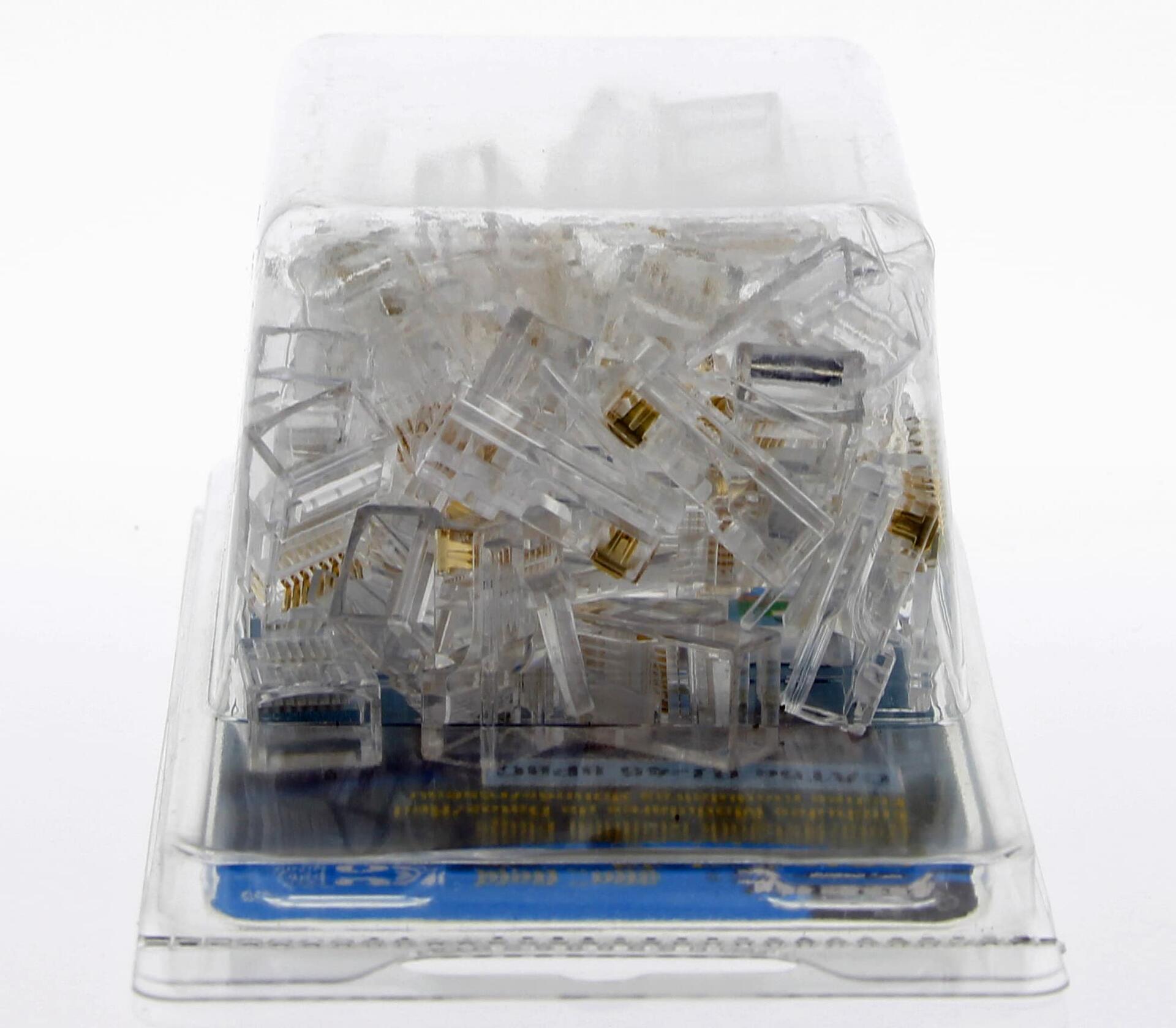

IDEAL TelCom - Network connector - RJ-45 (M) - CAT 5e - solid (pack of 50).
FEATURES
DATA CONNECTOR: Supports 1 gigabit Ethernet for CAT5e cable installations in home offices and commercial installations. Primary and secondary strain relief supports to retain cable jacket and minimize conductor movement once crimped

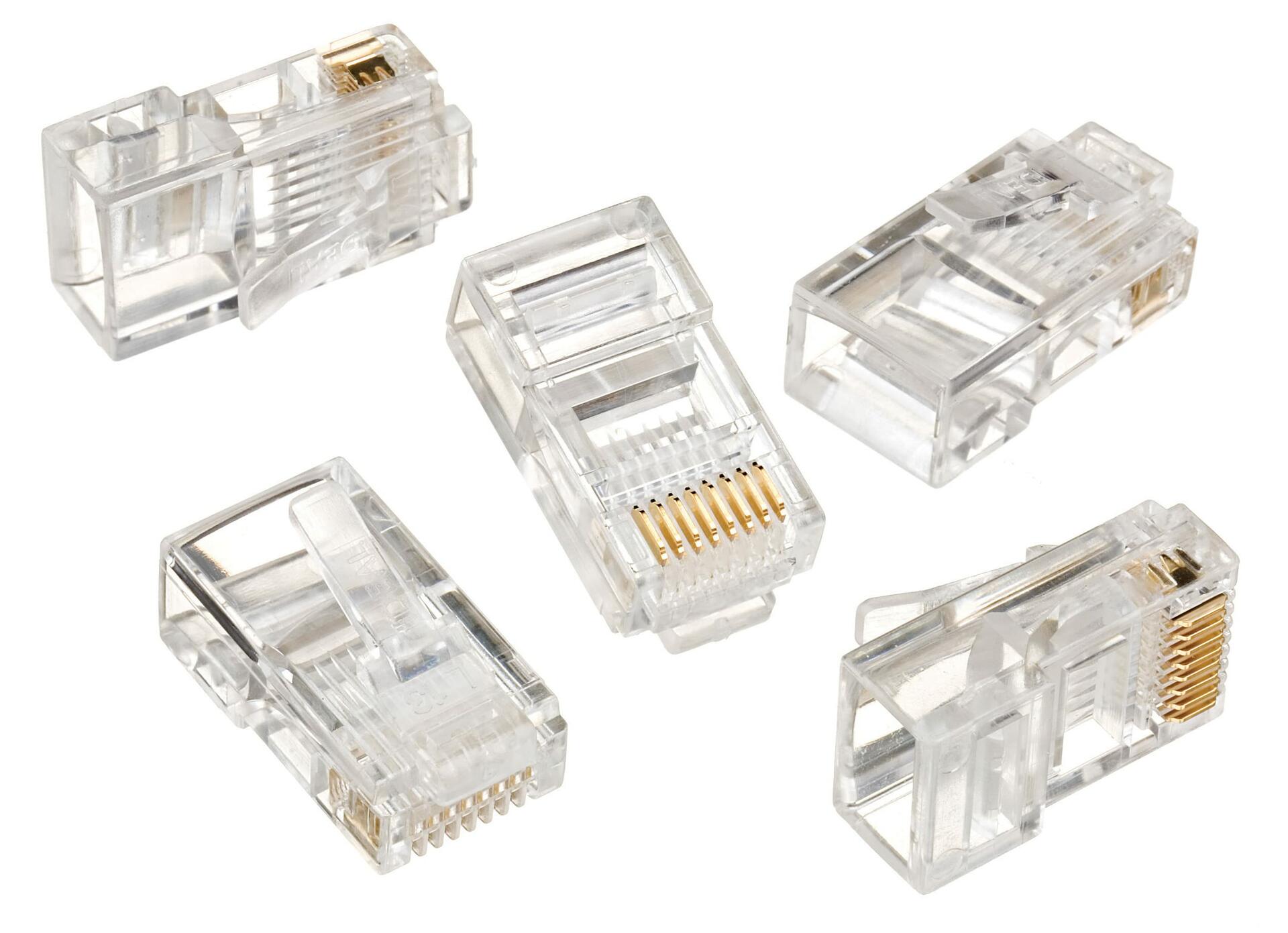

CONSTRUCTION: This modular plug features a single-piece design that supports different wiring schemes, including TIA-568A and TIA-568B configurations. Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports
EXCELLENT DESIGN: Three prong contact design for use with solid or stranded 24-26 AWG insulated copper conductors. Max conductor diameter of 0.042 in. - 1.07mm. Max recommended cable outer jacket diameter 0.270 in. - 6.8mm
COMPATIBILITY: Complies with industry standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports. UL Listed.

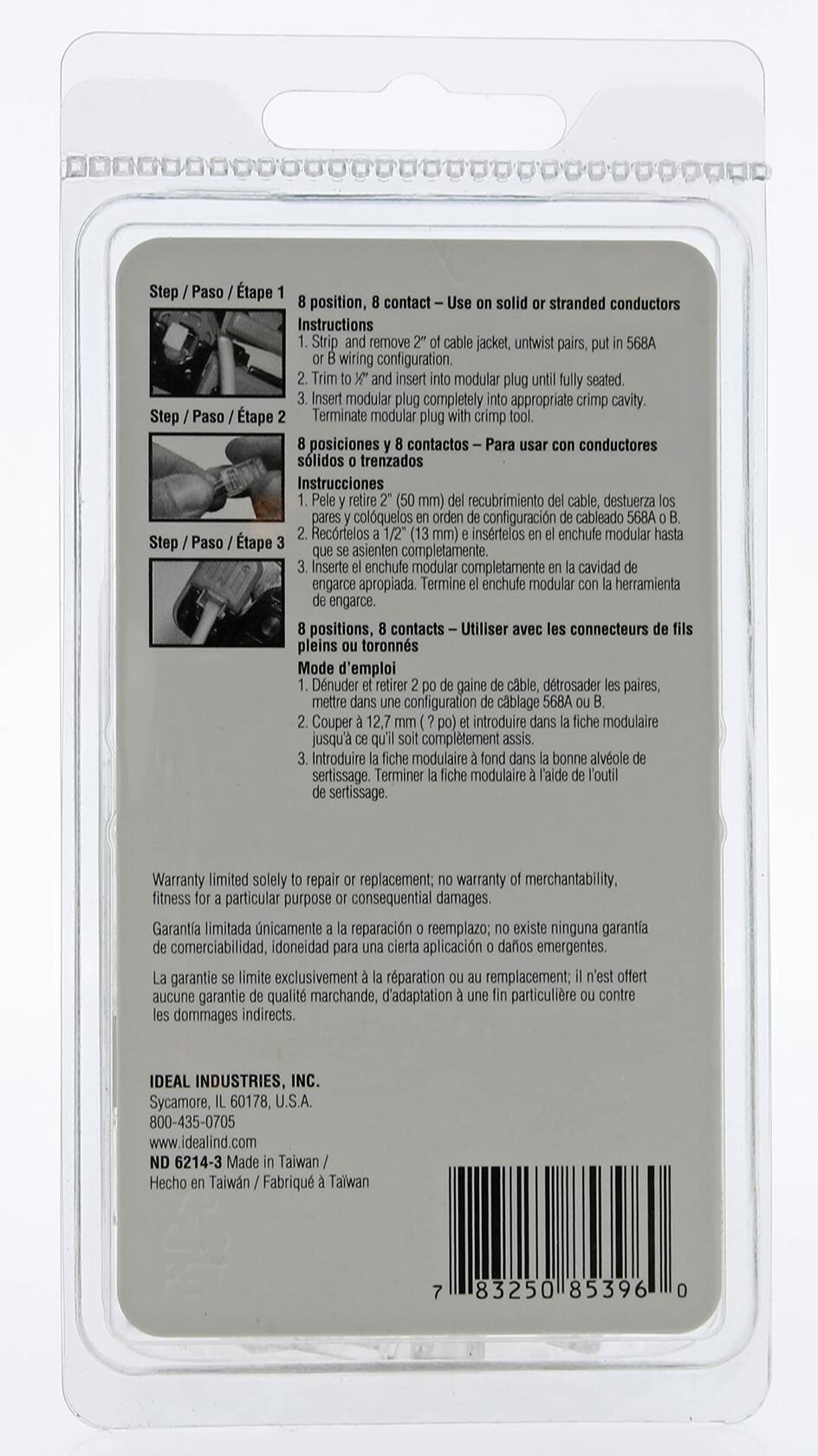

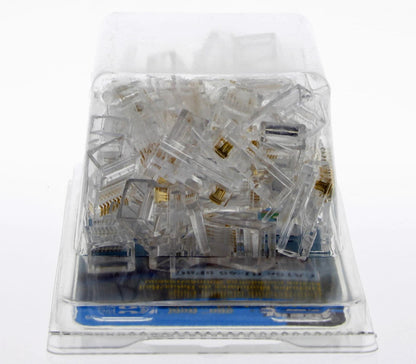

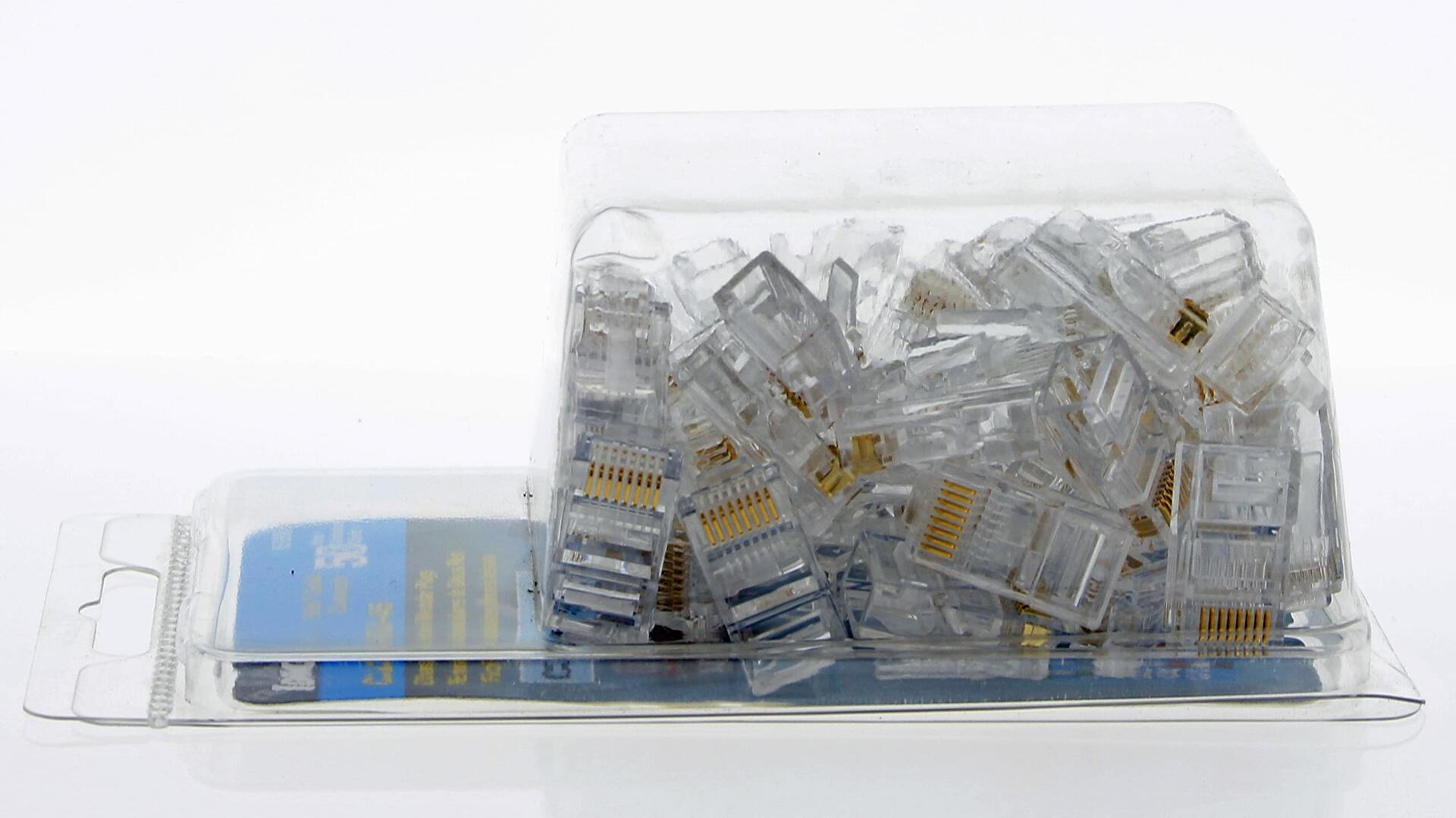

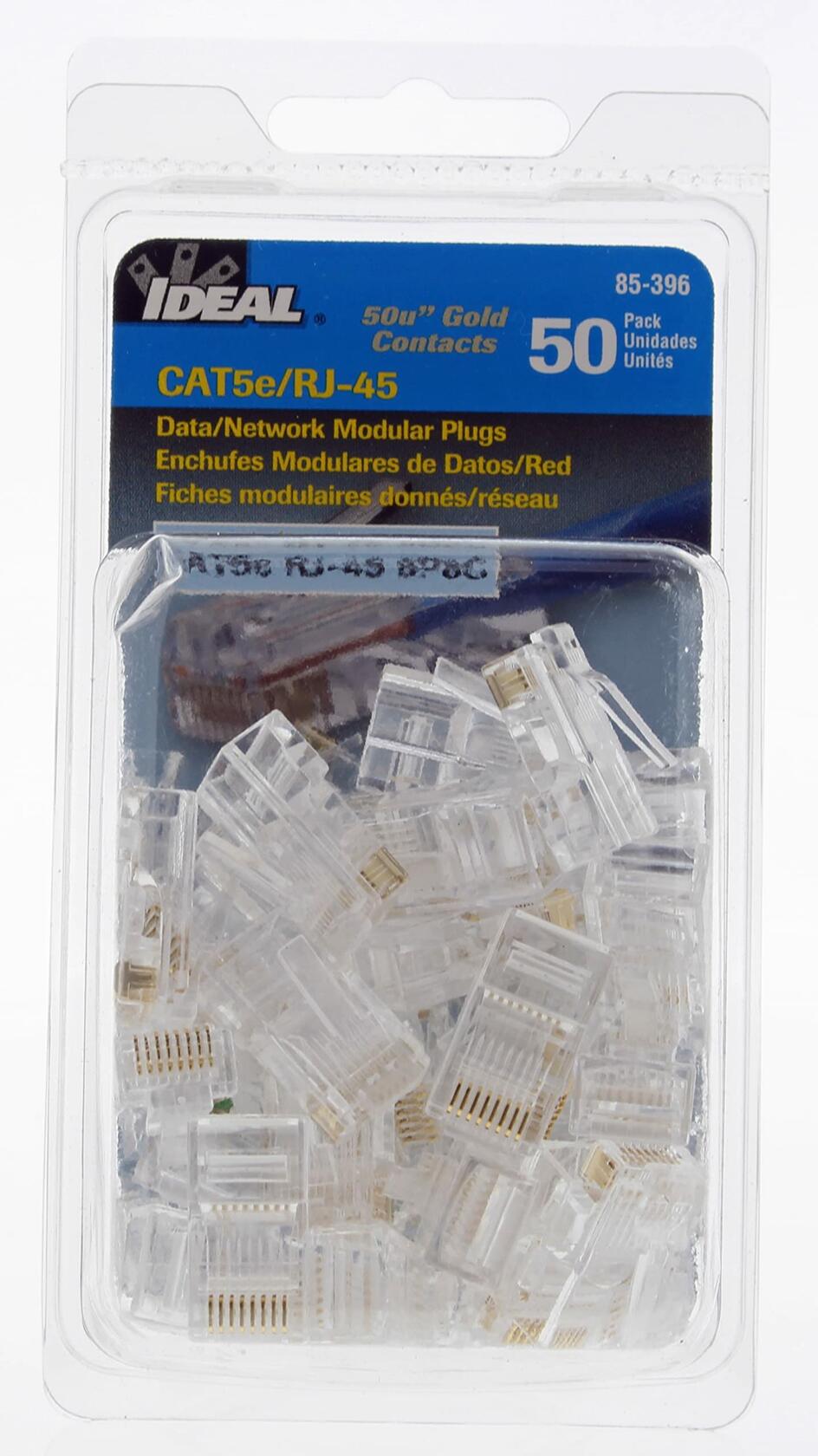

SPECIFICATIONS: The package includes [50] CAT5e plug connectors that ensure a permanent connection when crimped with a compatible industry standard modular plug crimp tool. 8-position, 8-contact RJ-45 modular plug for Cat 5e, 100Ω balanced twisted pair 100 MHz cables. Designed to work seamlessly with IDEAL Telemaster and FT-45 crimping tools, also compatible with industry standard modular plug crimping tools meeting specifications
